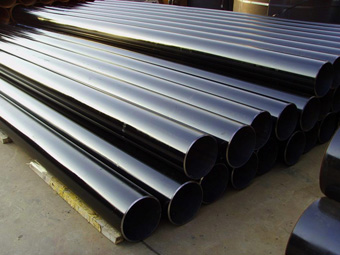

ERW Pipes ERW pipes -
Carbon Steel Seamless Pipes Carbon Steel Seamless Pipes -

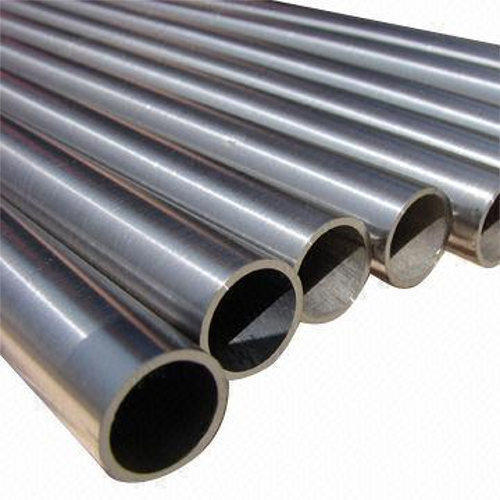

Alloy Pipes Alloy Pipes -

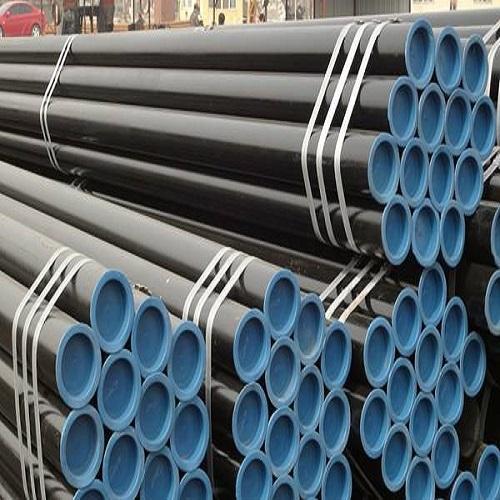

Seamless Pipe Seamless Pipe -

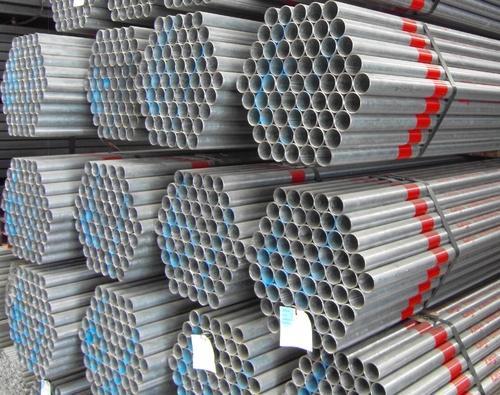

GI Pipes Heavy GI Pipes Heavy
PRODUCT RANGE – ERW
I) Pipe Size Range 21.30 – 508.00mm OD
II) Galvanized Pipes 21.30 – 355.60mm OD
III) Boiler Tubes 33.40 – 355.60mm OD
IV) Oil Country Tubular Goods (OCTG)
Size Range:
Line Pipes — End from 88.9 – 508.0mm OD Threaded & Coupled with API Round Threads from 88.90 – 323.90mm OD
Casing — From 114.3 – 244.48mm Outside Diameter Plain End / Threaded and Coupled with STC, LTC & BTC Threads
Grades:
Line Pipes (API 5L) — Upto Gr. X-70 (PSL-1 and PSL-2)
Casing & Tubing (API 5CT) — J-55 and K-55
V) Sectional Pipes
Square Hollow Sections — 25 x 25 to 250 x 250mm
Rectangular Sections — 50 x 25 to 300 x 200mm
BLACK & GALVANIZED
ERW STEEL TUBES CONFORMING TO IS:1239 (PT-I) EQUIVALENT TO BS:1387 & STRUCTURAL TUBES CONFORMING TO IS:1161
ERW PIPES FOR WATER & SEWAGE CONFORMING TO IS:3589 & WATER WELL CASING CONFORMING TO IS:4270
Weld-On Connectors – ERW
We now offer weldable Box and Pin Multi Start Thread Connectors, suitable to be girth welded with ERW Pipes as per Specification API 5L. Weld-On Connectors are designed for Offshore and Onshore applications, where environmental conditions call for fast connector make-up combined with superior performance.
We use Leopard Connectors which combine the advantages of a preloaded thread-type connector with the rapid makeup, desired for offshore operations.
The Leopard Connectors have a high cone angle and are available in twin on four start thread. When stabbed, the box swallows approximately 90% of the pin length. The stabbing guide prevents cross-threading. Full make-up is achieved in less than half a turn with a four-start thread and less than one turn with a two-start thread.
Leopard Connectors have the following features:
- Multi Start Threads for fast make-up
- Low torque make-up with rig tongs less than one turn make-up
- Integral 4 point anti-rotation provision
- Suitable for piling
- Reversible and reusable
- Visual indication of make-up
- Preloaded for fatigue
Weld-On Connectors are available as per the following details:
Specification: API 5L
Grade: Gr. B through Gr. X-70
Pipe Size: Up to 508.00mm (20″)
Wall Thickness: 15.87mm (max.)
Product Range – Seamless
I) Hot Finished Pipes and Tubes
Carbon & Alloy Steel:
Outside Diameter (OD) — 26mm – 508.0mm
Wall Thickness (WT) — 2.8mm – 40mm
II) Cold Pilgered / Cold Drawn Tubes
Carbon & Alloy Steel:
Outside Diameter (OD) — 10mm – 101mm
Wall Thickness (WT) — 1mm – 10mm
III) OIL Country Tubular Goods (OCTG)
A) Size Range
Line Pipes:
*Plain End upto 20″ (508 mm) Outside Diameter
*Threaded and Coupled with API Line Pipe threads up to 12″ (323.9 mm) Outside Diameter
Casing:
Up to 133/8″ (339.72 mm) Outside Diameter Plain End / Threaded and Coupled with STC, LTC & BTC Threads
Tubing:
NUE / EUE up to 41/2″ Outside Diameter Plain End or Threaded & Coupled with API Round Threads
Drill Pipes:
*Internal Upset (IU) 3½ ” to 4½ ”
*External Upset (EU) 2” to 4½ ”
*Internal – External Upset (IEU) 4½ ” to 5”
B) Grades
Line Pipes (API – 5L) — All Grades up to X-70 / X-70Q

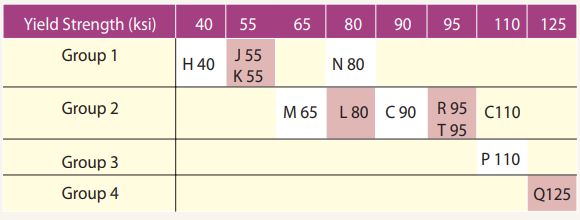

Casing & Tubing (API 5CT)
Proprietary Grades:
High Collapse Casing — MAHA HC L80, MAHA HC P110
Drill Pipes (API 5DP) — Gr. E, X,G,S
Sour Service — NACE (MR – 0175)

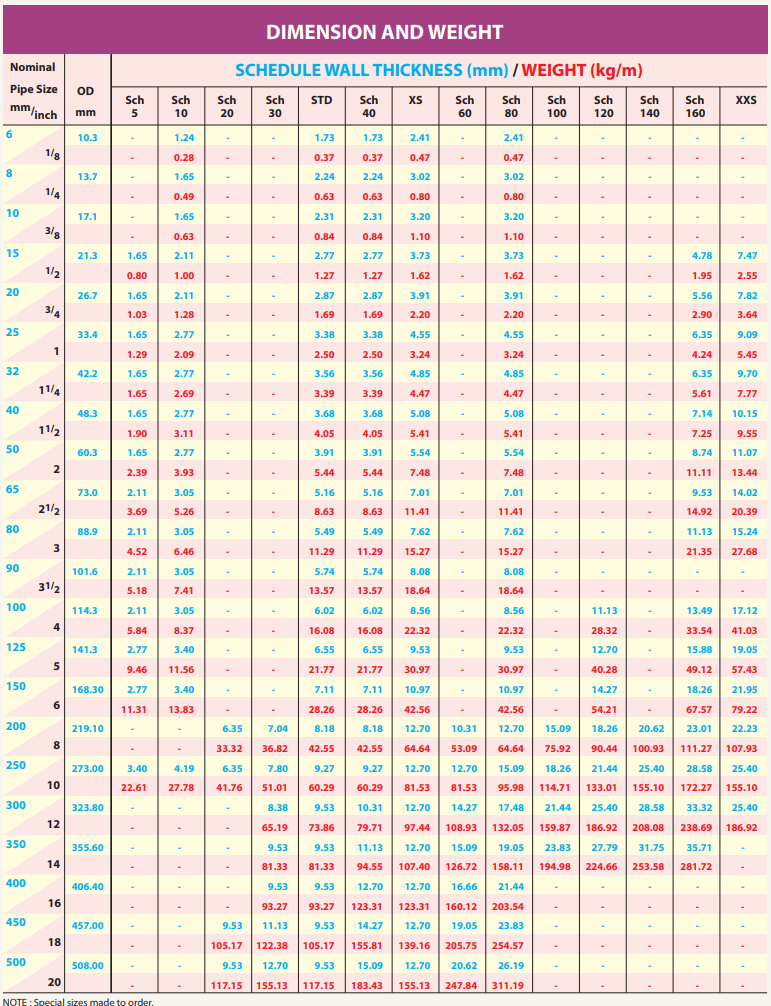

ASTM SCHEDULED SIZES
OCTG: API LINE PIPES
Sizes 0.840″ through 20″ (SI Units)
OCTG: API TUBING
OCTG: API CASING
Pup Joints, Coupling and Coupling Stock
Pup Joints
Pup Joints of Tubing (EUE / NUE) and Casing are available in length of 2 feet, 3 feet, 4 feet, 6 feet, 8 feet, 10 feet etc.
Coupling Stock
Coupling Stocks for all sizes of Casing and Tubing are available in the length of 3.0 to 12.0 mtrs.
Dimensions of the Coupling Stock and Couplings

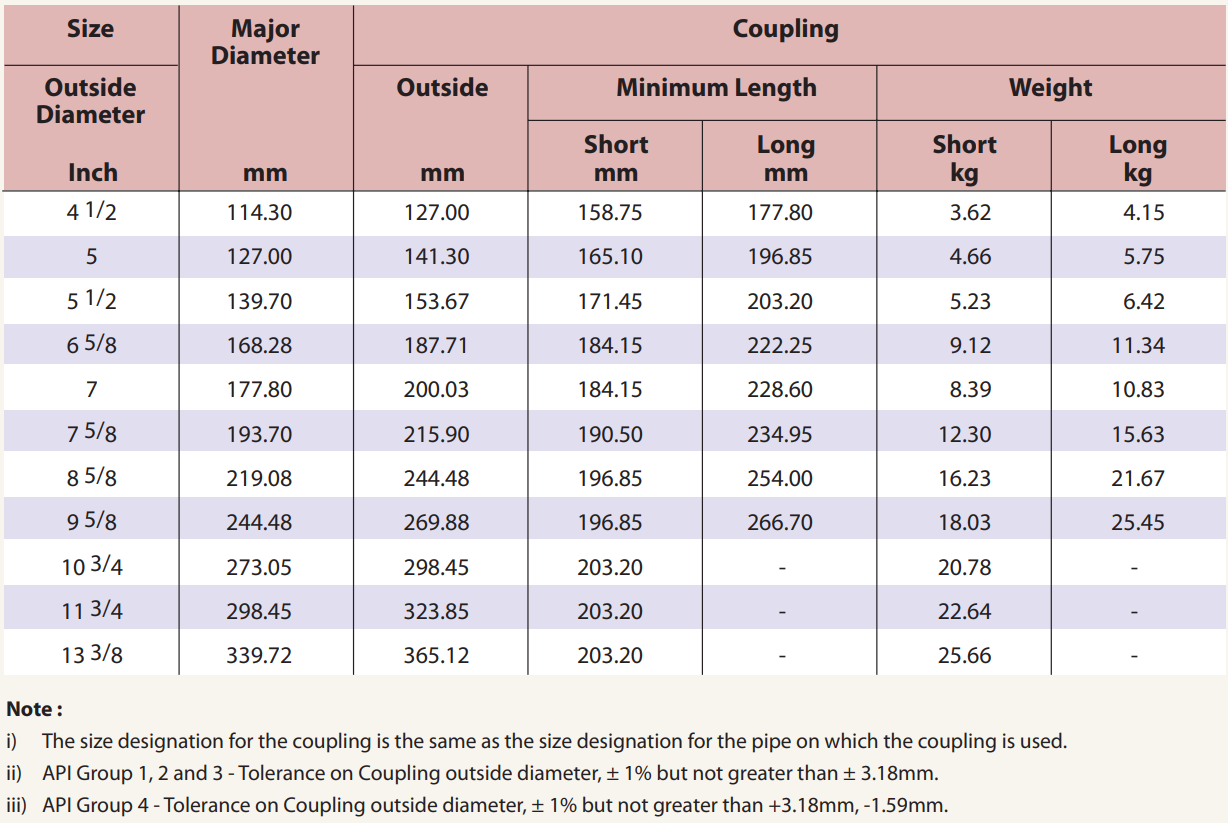

I) CASING ROUND – THREAD COUPLING DIMENSIONS :

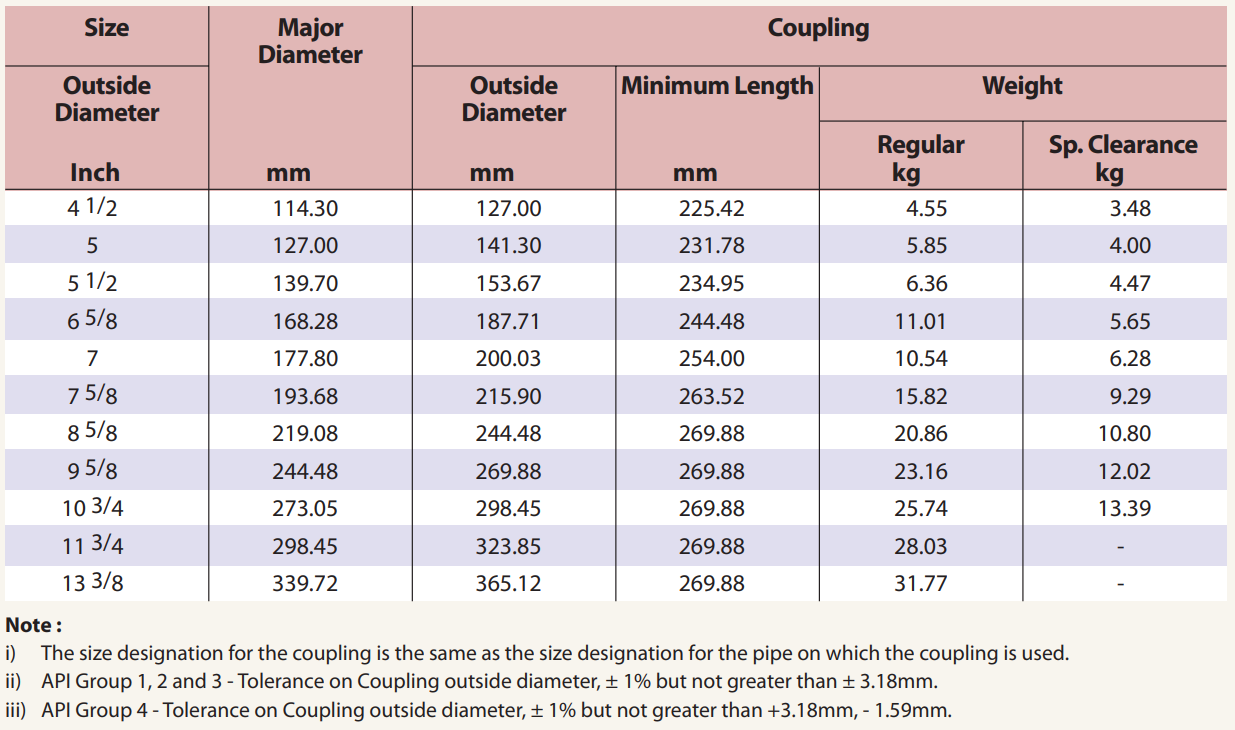

II) BUTTRESS THREAD CASING COUPLING DIMENSIONS:

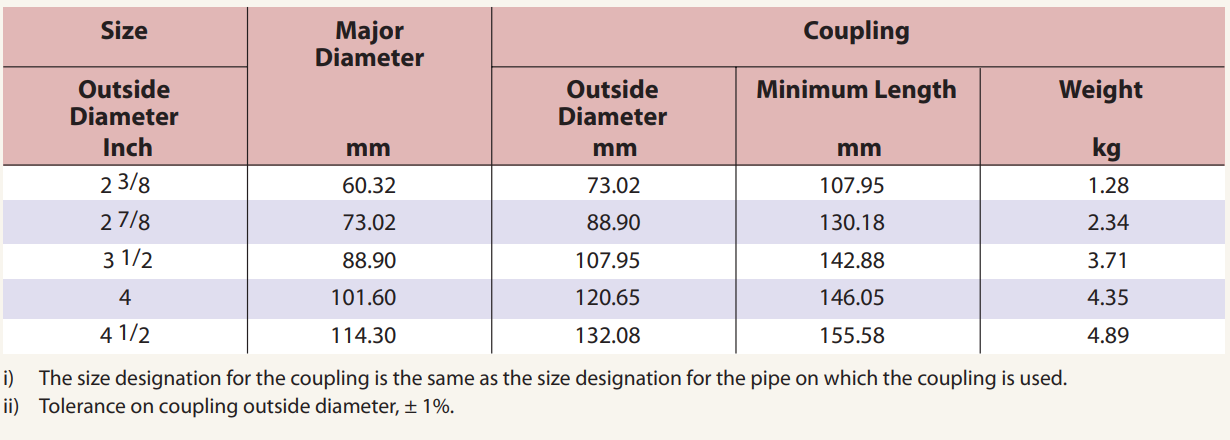

III) NON UPSET TUBING COUPLING DIMENSIONS :

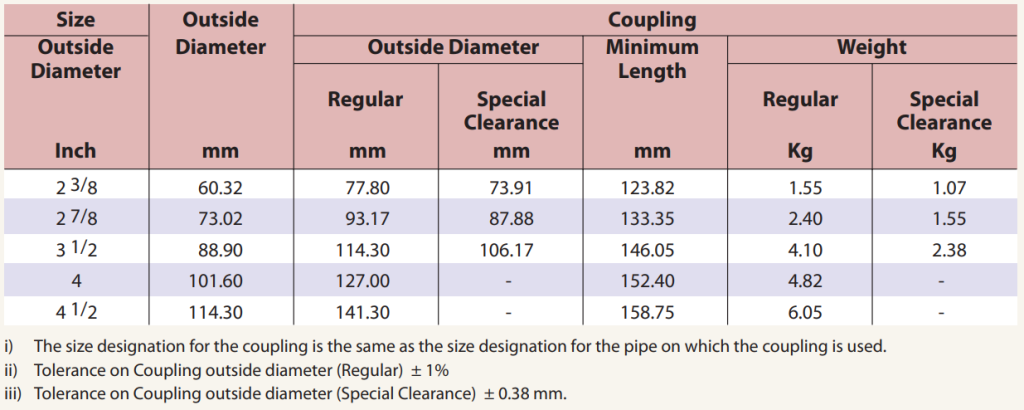

IV) EXTERNAL UPSET TUBING COUPLING DIMENSIONS :
Drill Pipes
Upset Drill Pipes with Weld-On Tool Joints
Dimensions and Weights :

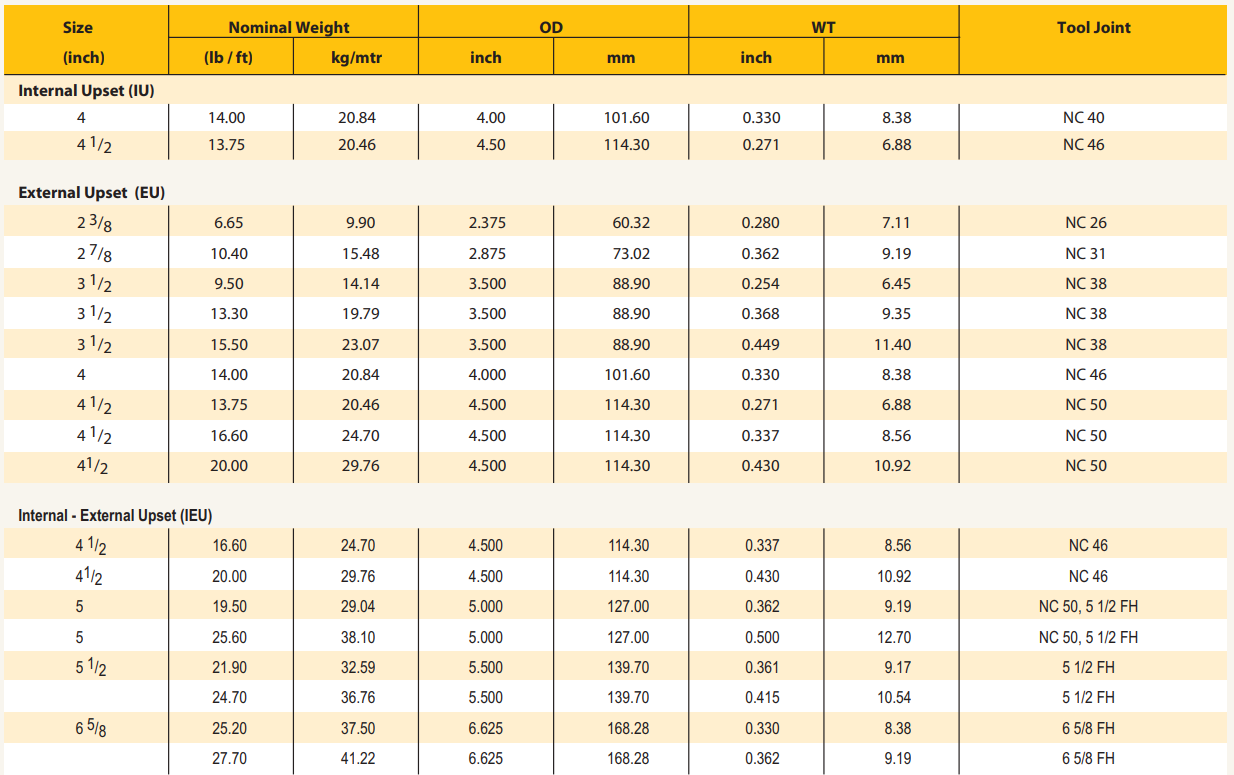

I) Grade E

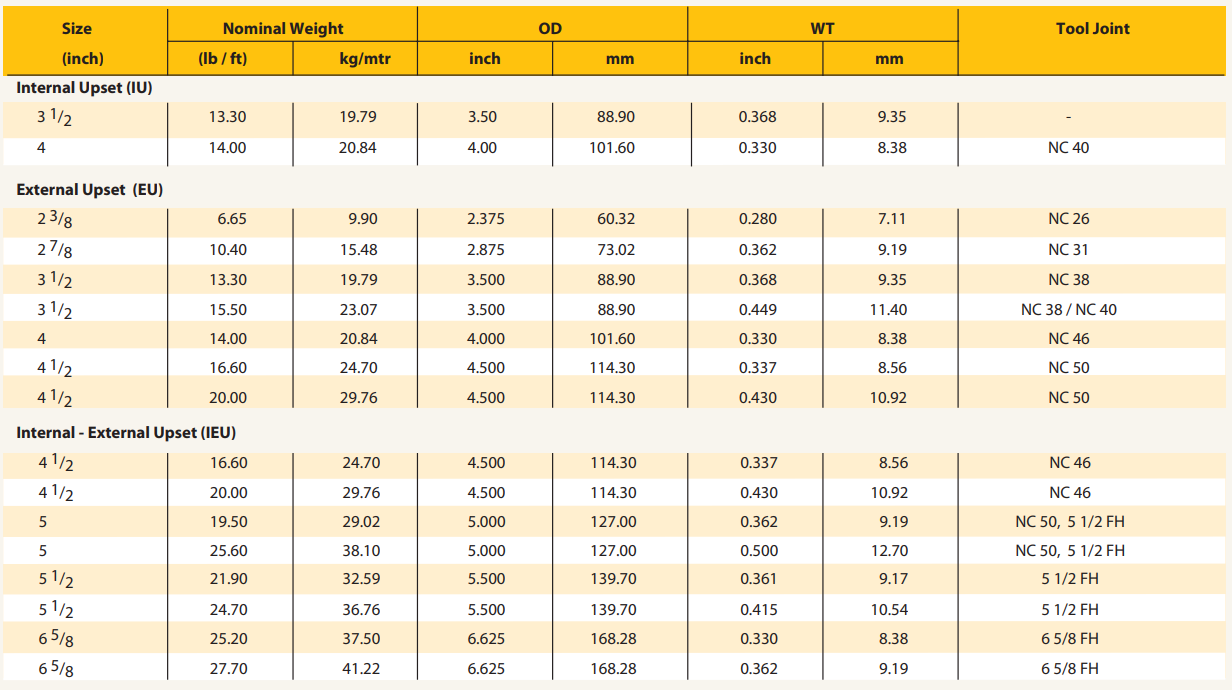

II) Grade X, G, S

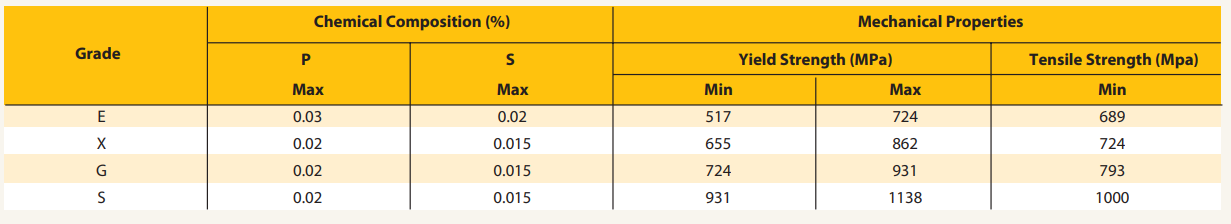

CHEMICAL COMPOSITION & MECHANICAL PROPERTIES
Tenaris Hydril Premium Connections
for demanding environment
Tenaris Hydril offers outstanding premium connection design and technology. The comprehensive range of high-performance products has been designed to meet the requirements of the most challenging applications.
Tenaris Hydril 3SB premium connections are available in Threaded & Coupled configurations with metal-to-metal seal.
Main Structural Differences:
The premium connections have 3 main features which separate them from the API connections:
- Presence of shoulder,
- Presence of a metal seal
- And a different thread form.
Quality & Manufacturing
These premium connections are used when there are following requirements:
- High performance in combined loads
- High torsional strengths
- Metal-to-Metal sealing
- High galling resistance & controlled stress levels
- Tight clearance situations
Tenaris Hydril Premium Connections are manufactured to same quality standards under the Quality Management System that Tenaris uses throughout its global manufacturing system.

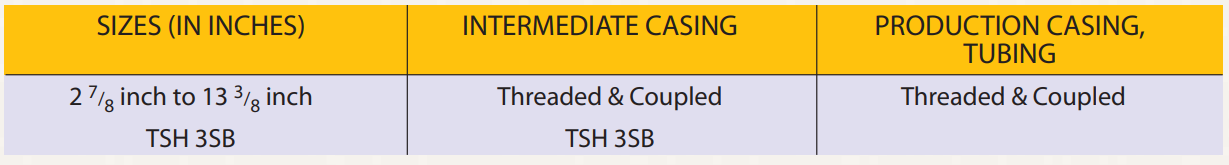

APPLICATIONS GUIDE :

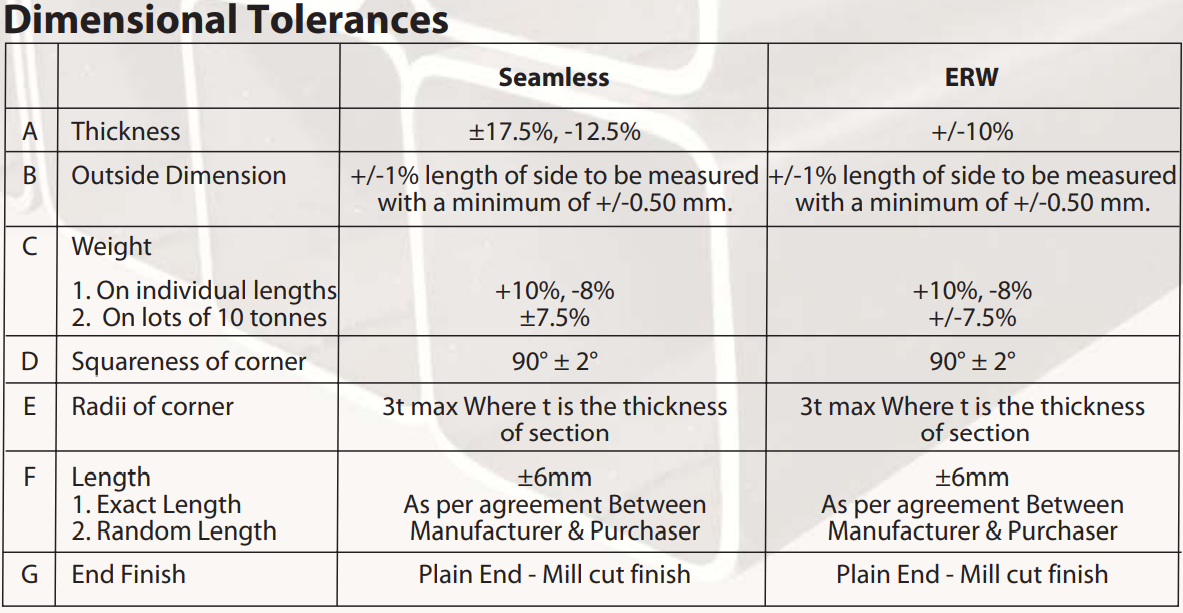

Square & Rectangular Hollow Sections (Seamless & ERW)
We can also supply sections as per ASTM A 500 specification.
Square pipe: Hf SHS (Hot formed square hollow section)
(manufacture processes : Seamless & ERW)
Product Range

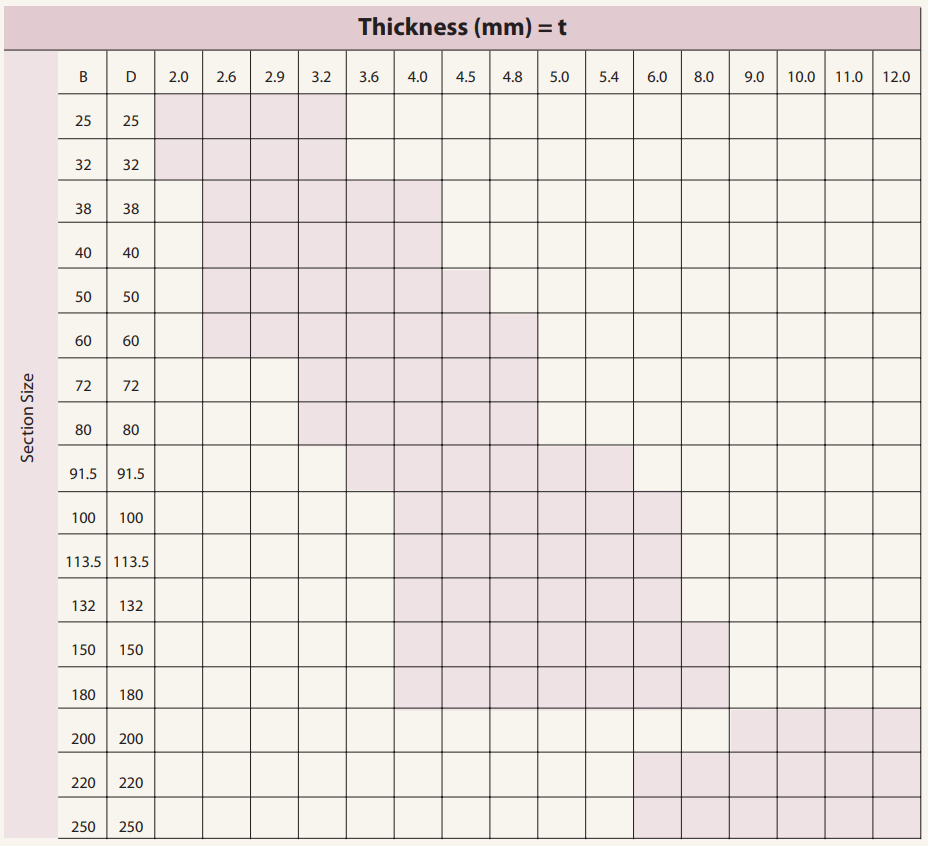

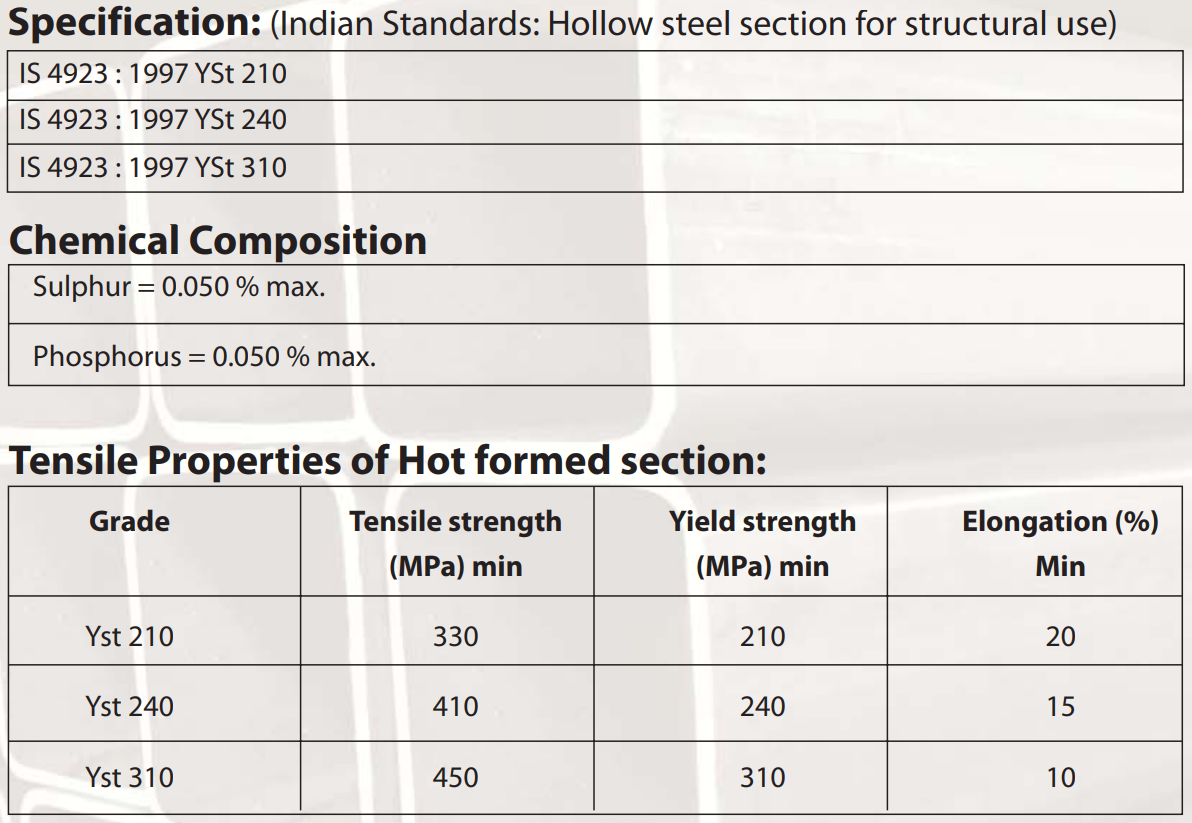

Product Range: Square Hollow Sections (SHS)
Specification: IS : 4923

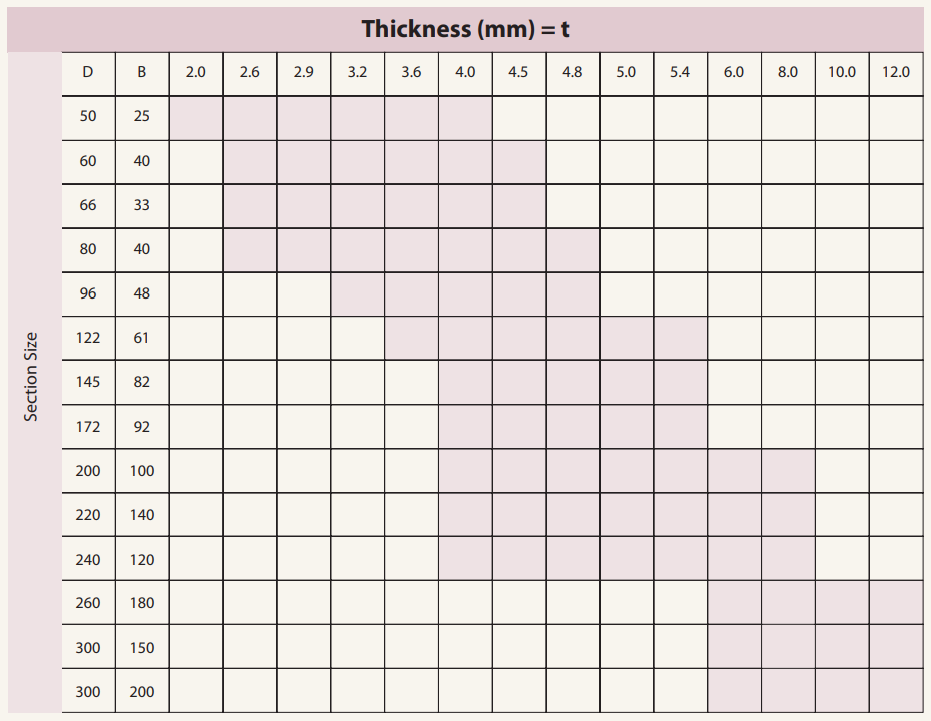

Product Range: Rectangular Hollow Sections (RHS)
Specification: IS : 4923
Pipe Coating Facility

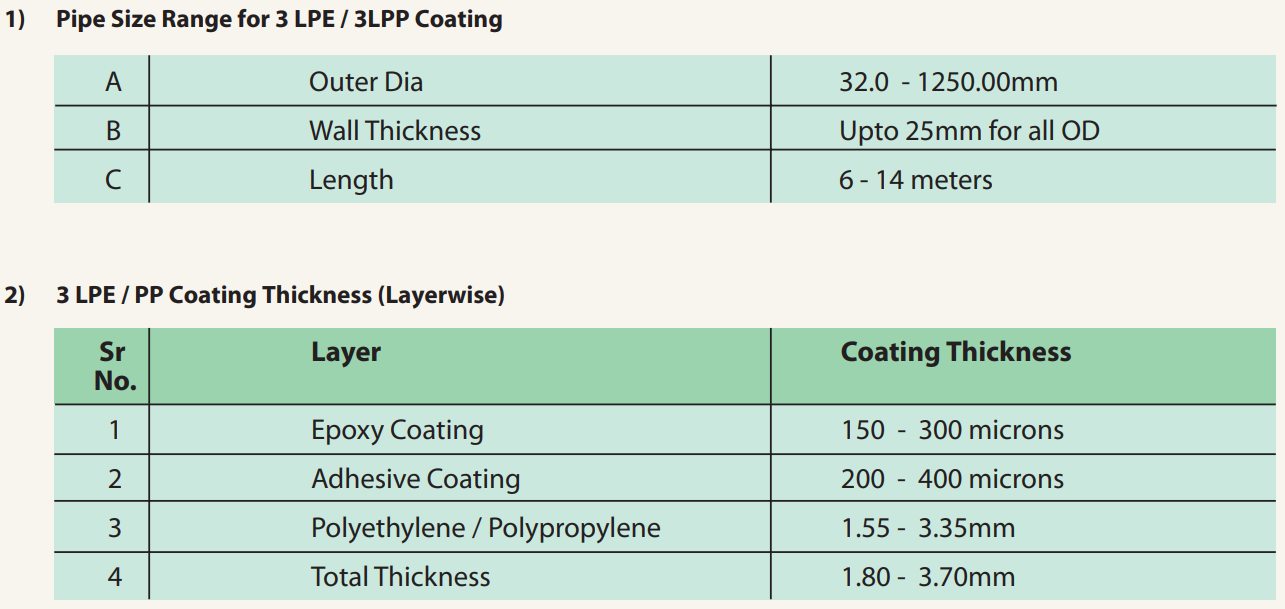

3L PE/PP, FBE, DFBE and Internal Coating (Liquid Epoxy)
3 LPE / 3 LPP Coating is anti-corrosive coating of 3 layers of epoxy, adhesive and PE / PP respectively on pipes, as per following details
- 1st Layer is of Epoxy coating which acts as an Anti-Corrosive Layer.
- 2nd Layer is of Adhesive coating which acts as a Tie layer between Epoxy and PE/PP.
- 3rd Layer is Polyethylene / Polypropylene coating which provides mechanical strength to the coating.
Advantages of Coated Pipes:
The coat begins on Bare Pipe with surface preparation by abrasive blast cleaning, phosphoric acid treatment, chromate treatment prior to the application of coat followed by electrostatic fusion bonded epoxy layer as primer, adhesive as tie layer, followed by high density Polyethylene/ Polypropylene layer as top coat.
- Strong protective layer
- Long term chemical and mechanical resistance
- High mechanical impact strength and penetration resistance
- Increases life span of pipes more than 25 years
- Economy in the long term due to less repairing/ re-working
Applications & Specifications:
- 3 LPE Coating (DIN 30670) for service temperature upto
+80°C - 3 LPP Coating (DIN 30678) for service temperature upto

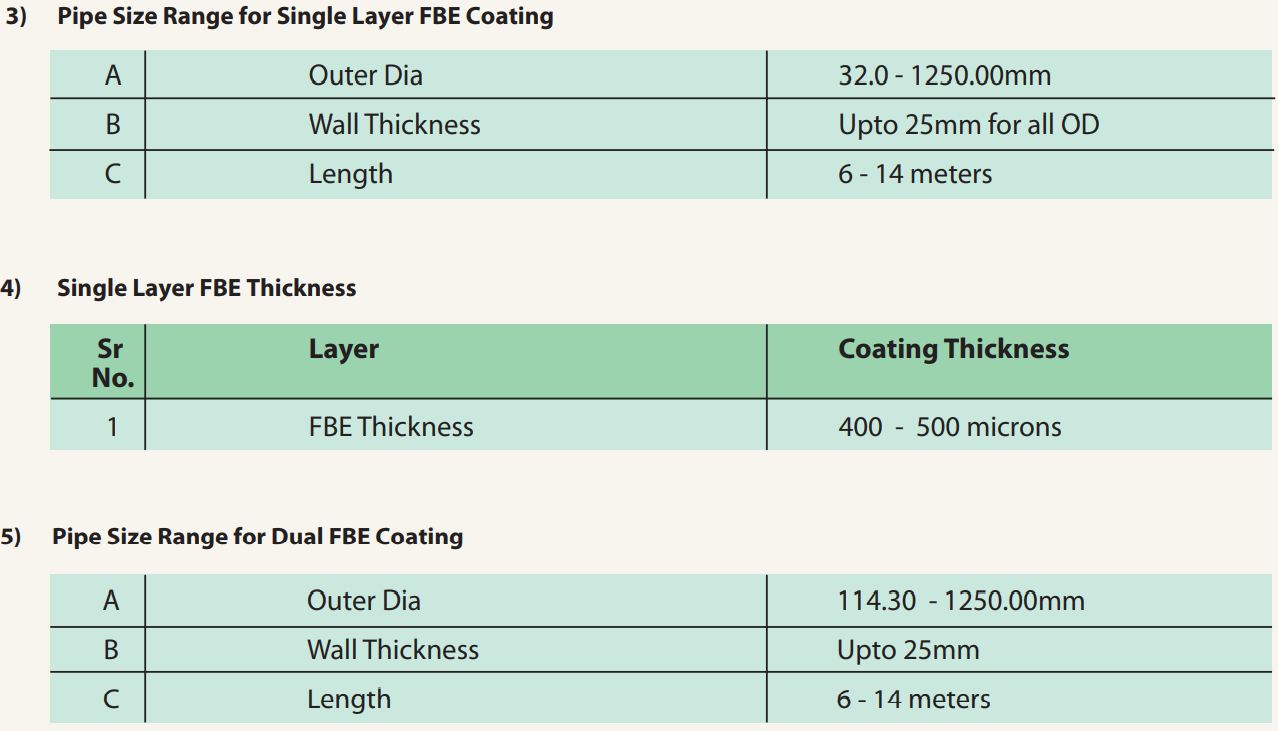

+110°C - Single-layer FBE Coating (Canadian CAN/CSA Z245-06/ NACE RP 0394) for service temperature upto +80°C

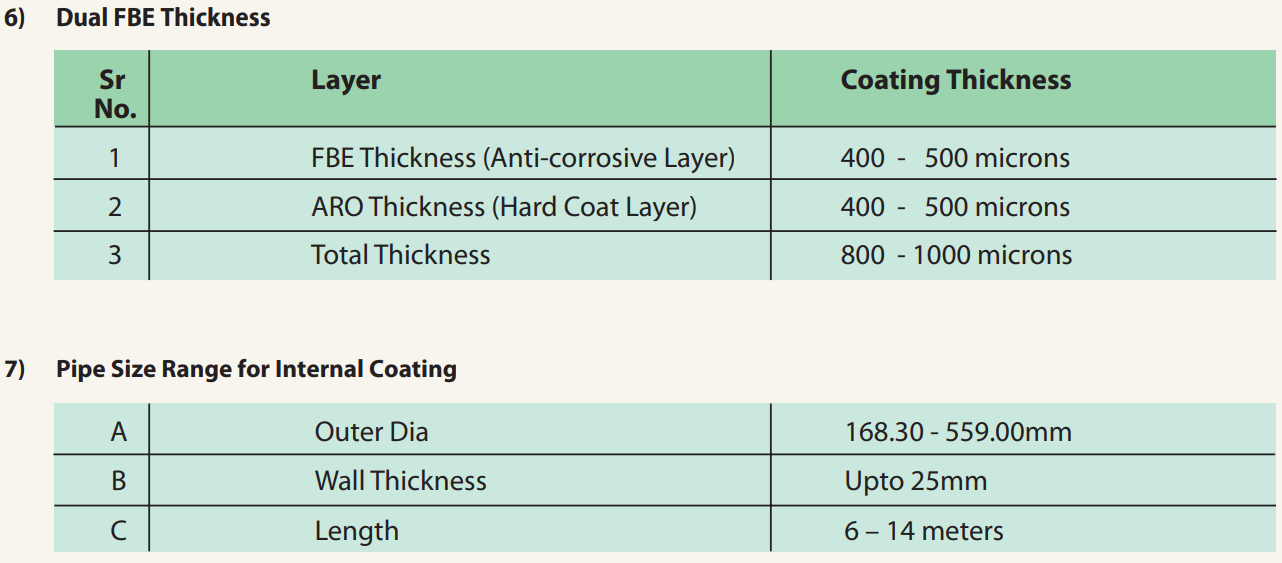

- Dual-layer FBE Coating (Canadian CAN/CSA Z245-06/ NACE RP 0394) for service temperature upto +80°C

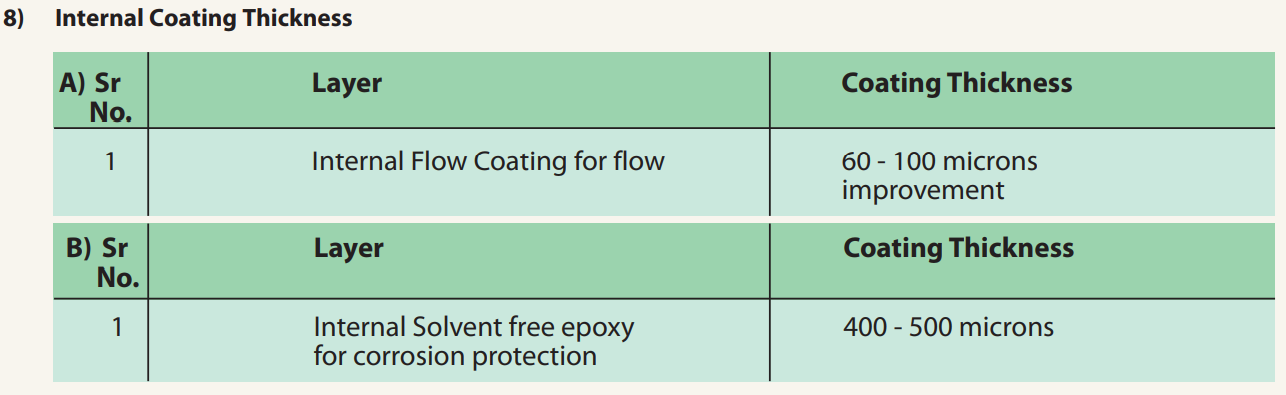

- Internal Flow coating (API RP 5L2/ISO 15741) for service temperature upto + 80°C
- Internal Solvent-free epoxy (AWWA C 210/NF – French Specification & BS British Specification) for service temperature upto + 80°C

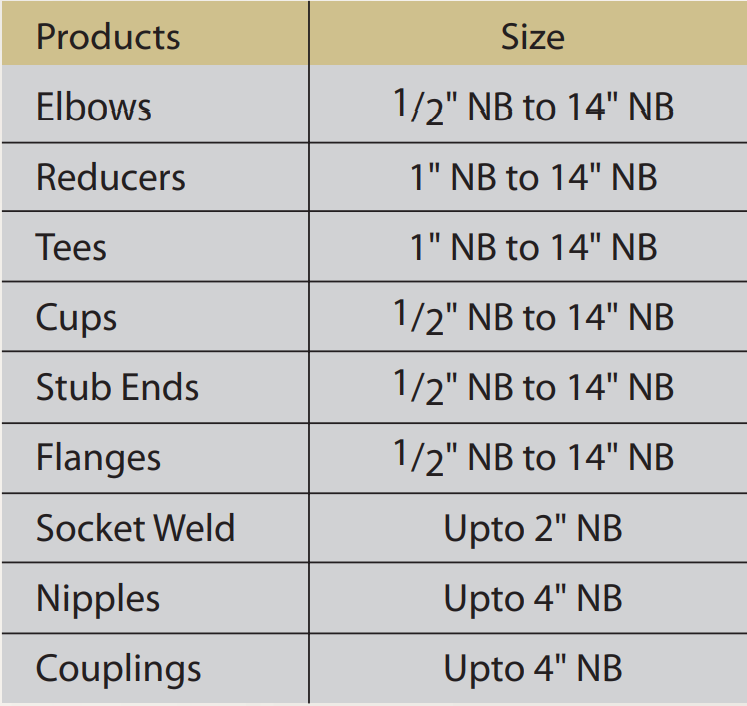

Pipe Fittings
Product Range
The product range includes Seamless Carbon Steel and Alloy Steel, as per following details:
Material Specifications
ASTM A 234 WPB WPC WP-1 WP12 WP11 WP22 WP5 WP9 WP91 and WPR
ASTM A 403 WP321 321H 304 304L 316 316L 347 and 347H
ASTM A 420 WPL-6 WPL-9 WPL-3 and WPL-8
